When I started this blog, my plan was to write about interesting papers or at least blog about the ones from my lab. This post is a bit of both.
I was recently asked to write a “Journal Club” piece for Nature Reviews Molecular Cell Biology, which is now available online. It’s paywalled unfortunately. It’s also very short, due to the format. For these reasons, I thought I’d expand a bit on the papers I highlighted.
I picked two papers from Dick McIntosh’s group, published in J Cell Biol in the early 1990s as my subject. The two papers are McDonald et al. 1992 and Mastronarde et al. 1993.
Almost everything we know about the microanatomy of mitotic spindles comes from classical electron microscopy (EM) studies. How many microtubules are there in a kinetochore fibre? How do they contact the kinetochore? These questions have been addressed by EM. McIntosh’s group in Boulder, Colorado have published so many classic papers in this area, but there are many more coming from Conly Rieder, Alexey Khodjakov, Bruce McEwen and many others. Even with the advances in light microscopy which have improved spatial resolution (resulting in a Nobel Prize last year), EM is the only way to see individual microtubules within a complex subcellular structure like the mitotic spindle. The title of the piece, Super-duper resolution imaging of mitotic microtubules, is a bit of a dig at the fact that EM still exceeds the resolution available from super-resolution light microscopy. It’s not the first time that this gag has been used, but I thought it suited the piece quite well.
There are several reasons to highlight these papers over other electron microscopy studies of mitotic spindles.

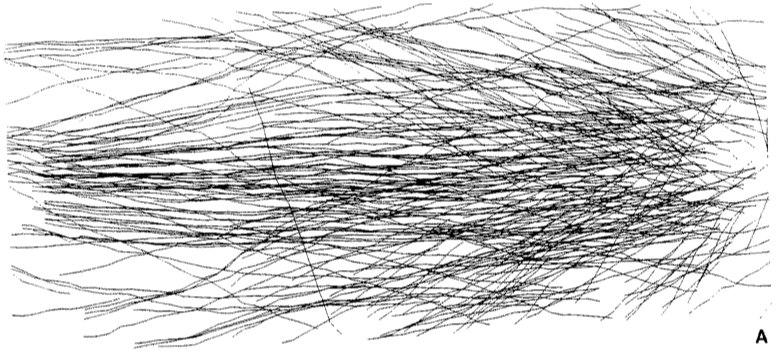

It was the first time that 3D models of microtubules in mitotic spindles were built from electron micrographs of serial sections. This allowed spatial statistical methods to be applied to understand microtubule spacing and clustering. The software that was developed by David Mastronarde to do this was later packaged into IMOD. This is a great software suite that is actively maintained, free to download and is essential for doing electron microscopy. Taking on the same analysis today would be a lot faster, but still somewhat limited by cutting sections and imaging to get the resolution required to trace individual microtubules.
The paper actually showed that some of the microtubules in kinetochore fibres travel all the way from the pole to the kinetochore, and that interpolar microtubules invade the bundle occasionally. This was an open question at the time and was really only definitively answered thanks to the ability to digitise and trace individual microtubules using computational methods.
The final thing I like about these papers is that it’s possible to reproduce the analysis. The methods sections are wonderfully detailed and of course the software is available to do similar work. This is in contrast to most papers nowadays, where it is difficult to understand how the work has been done in the first place, let alone to try and reproduce it in your own lab.
David Mastronarde and Dick McIntosh kindly commented on the piece that I wrote and also Faye Nixon in my lab made some helpful suggestions. There’s no acknowledgement section, so I’ll thank them all here.
References
McDonald, K. L., O’Toole, E. T., Mastronarde, D. N. & McIntosh, J. R. (1992) Kinetochore microtubules in PTK cells. J. Cell Biol. 118, 369—383
Mastronarde, D. N., McDonald, K. L., Ding, R. & McIntosh, J. R. (1993) Interpolar spindle microtubules in PTK cells. J. Cell Biol. 123, 1475—1489
Royle, S.J. (2015) Super-duper resolution imaging of mitotic microtubules. Nat. Rev. Mol. Cell. Biol. doi:10.1038/nrm3937 Published online 05 January 2015
—
The post title is taken from “Joining a Fanclub” by Jellyfish from their classic second and final LP “Spilt Milk”.
